Specifications:

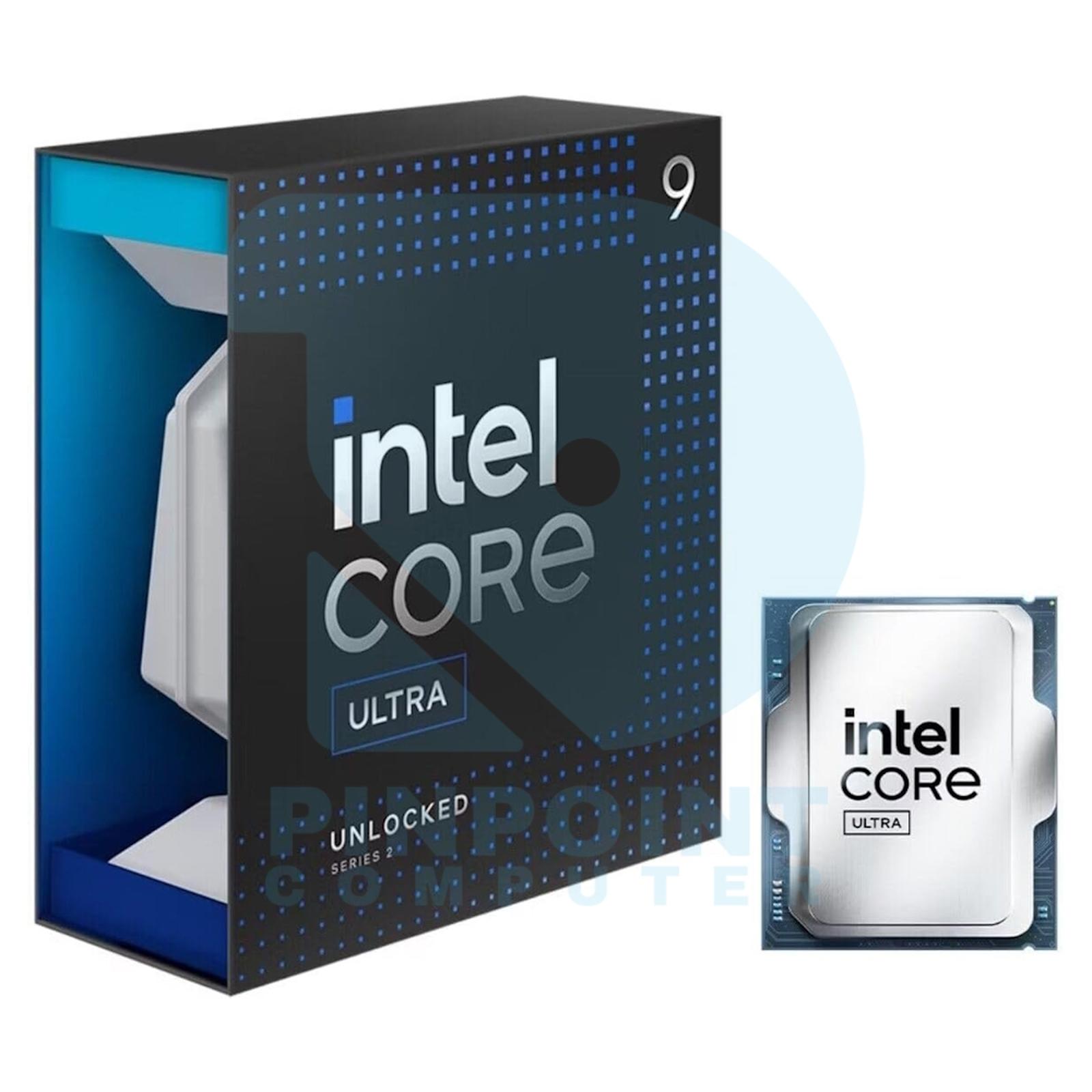

Product Collection: Intel Core Ultra Processors (Series 2)
Code Name: Products formerly Arrow Lake
Vertical Segment; Desktop
Processor Number: 285
Overall Peak TOPS (Int8): 36
CPU Specifications
Total Cores: 24
# of Performance-cores: 8
# of Efficient-cores: 16
Total Threads: 24
Max Turbo Frequency: 5.6 GHz
Intel Thermal Velocity Boost Frequency: 5.6 GHz
Intel Turbo Boost Max Technology 3.0 Frequency ‡: 5.5 GHz
Performance-core Max Turbo Frequency: 5.4 GHz
Efficient-core Max Turbo Frequency: 4.6 GHz
Performance-core Base Frequency: 2.5 GHz
Efficient-core Base Frequency: 1.9 GHz
Cache: 36 MB Intel Smart Cache
Total L2 Cache: 40 MB
Processor Base Power: 65 W
Maximum Turbo Power: 182 W
Intel Deep Learning Boost (Intel DL Boost) on CPU: Yes
AI Software Frameworks Supported by CPU: OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
CPU Lithography: TSMC N3B
Supplemental Information
Marketing Status: Launched
Launch Date: Q1’25
Embedded Options Available: Yes
Use Conditions: PC/Client/Tablet, Workstation
Memory Specifications
Max Memory Size (dependent on memory type): 256 GB
Memory Types: Up to DDR5 6400 MT/s
Max # of Memory Channels: 2
ECC Memory Supported ‡: Yes
GPU Specifications
GPU Name‡: Intel Graphics
Graphics Base Frequency: 300 MHz
Graphics Max Dynamic Frequency: 2 GHz
GPU Peak TOPS (Int8): 8
Graphics Output: DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
Xe-cores: 4
Max Resolution (HDMI)‡: 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)
Max Resolution (DP)‡: 8K @ 60Hz
Max Resolution (eDP – Integrated Flat Panel)‡: 4K @ 60Hz
DirectX* Support: 12
OpenGL* Support: 4.5
OpenCL* Support: 3
Intel Quick Sync Video: Yes
# of Displays Supported ‡: 4
Device ID: 0x7D67
Intel Deep Learning Boost (Intel DL Boost) on GPU: Yes
NPU Specifications
NPU Name‡: Intel AI Boost
NPU Peak TOPS (Int8): 13
Sparsity Support: Yes
Windows Studio Effects Support: Yes
AI Software Frameworks Supported by NPU: OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
Expansion Options
Direct Media Interface (DMI) Revision: 4
Max # of DMI Lanes: 8
Intel Thunderbolt 4: Yes
Scalability: 1S Only
PCI Express Revision: 5.0 and 4.0
PCI Express Configurations ‡: Up to 1×16+2×4, 2×8+2×4, 1×8+4×4
Max # of PCI Express Lanes: 24
Package Specifications
Sockets Supported: FCLGA1851
Thermal Solution Specification: PCG 2022C
Max Operating Temperature: 105 °C
