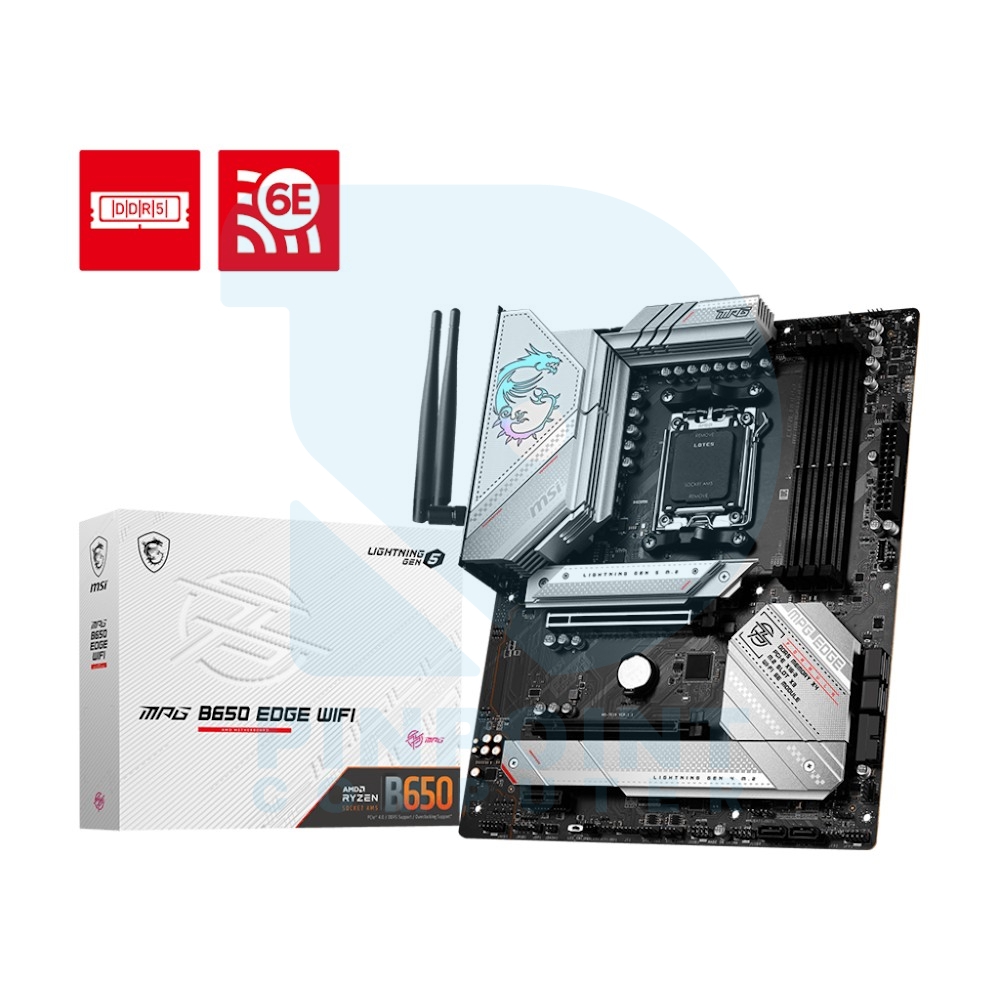

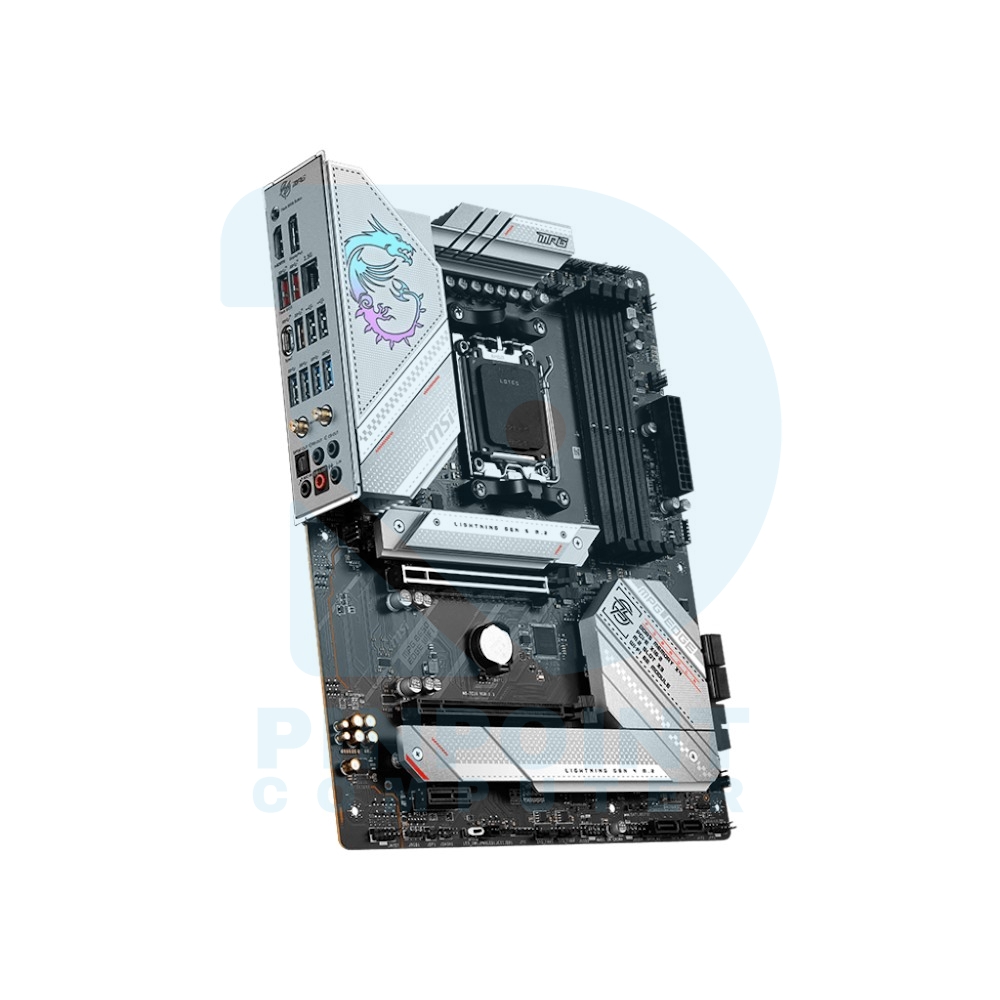

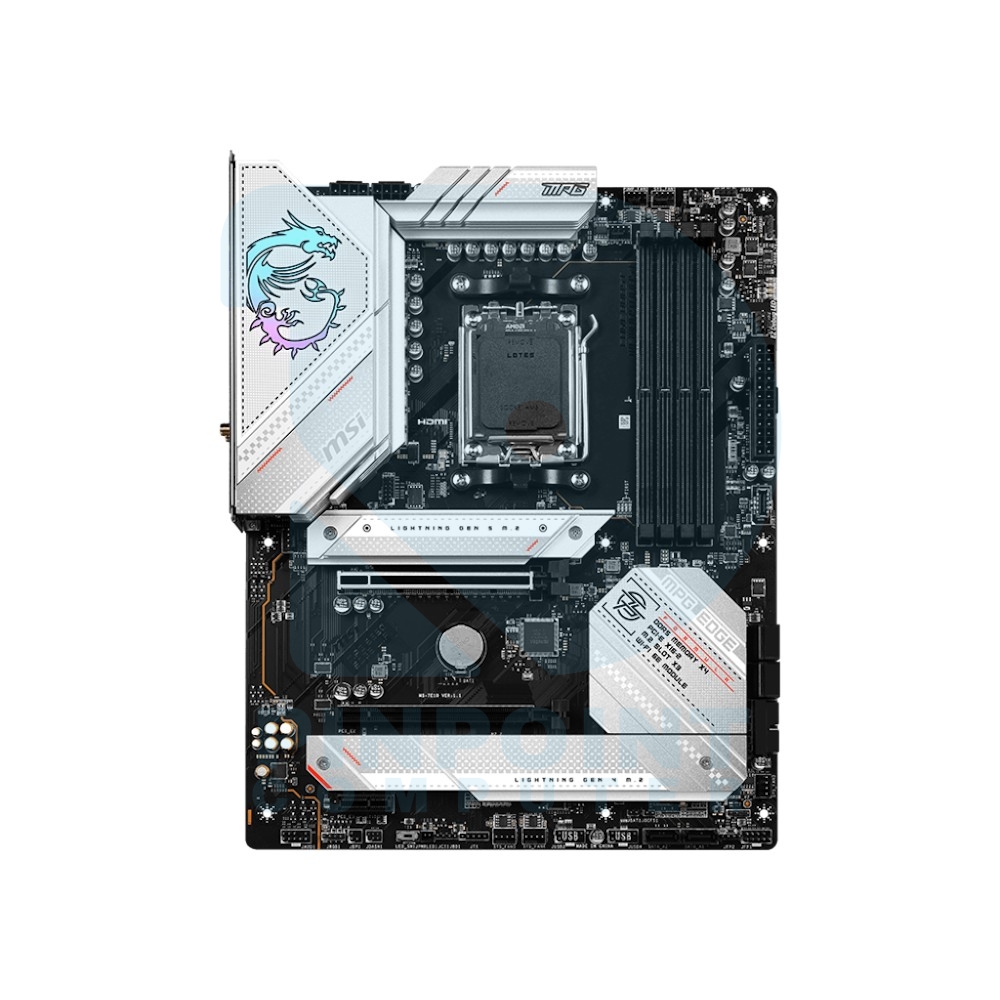

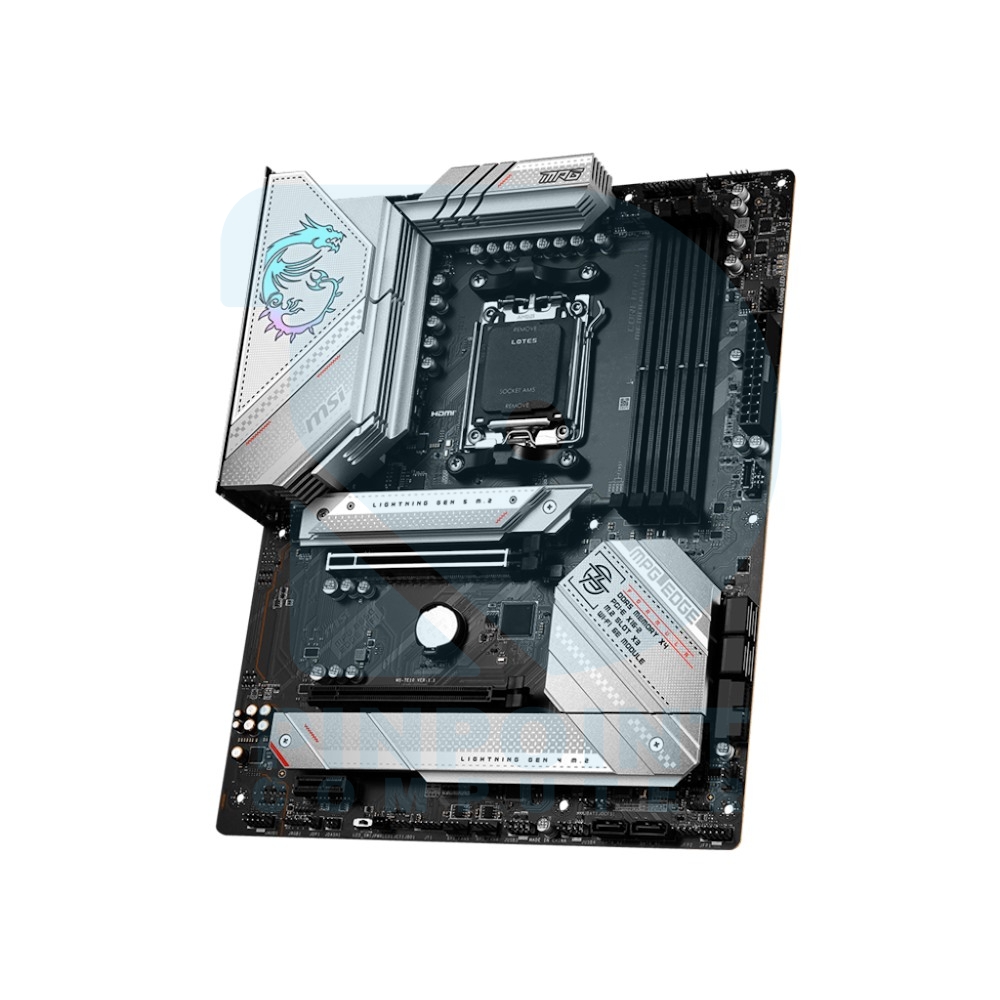

MSi MPG B650 Edge WiFi AMD Motherboard

Chat Terlebih Dahulu Untuk Memastikan Ketersediaan Barang
https://www.tokopedia.com/pinpointcomputer/msi-mpg-b650-edge-wifi-motherboard-amd
Garansi Resmi: AAA
Specifications:
Chipset: AMD B650
CPU: Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory:
– 4x DDR5, Maximum Memory Capacity 256GB
– Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
– Max. overclocking frequency:
— • 1DPC 1R Max speed up to 7800+ MHz
— • 1DPC 2R Max speed up to 6400+ MHz
— • 2DPC 1R Max speed up to 6400+ MHz
— • 2DPC 2R Max speed up to 5400+ MHz
– Supports Dual-Channel mode
– Supports non-ECC, un-buffered memory
– Supports AMD EXPO™
Onboard Graphics:
– 1x HDMI™
– Support HDMI™ 2.1 HDR, maximum resolution of 4K 60Hz*
– 1x DisplayPort
– Support DP 1.4 HBR3, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot:
– 2x PCI-E x16 slot
— • Supports x16/x2 (For Ryzen™ 9000 and 7000 Series processors)
— • Supports x8/x2 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
— • Supports x4/x2 (For Ryzen™ 5 8500G processor)
– 1x PCI-E x1 slot
– PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
– PCI_E2 Gen PCIe 4.0 supports up to x2 (From Chipset)
– PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage:
– 3x M.2
– M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
– M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
– M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
– 6x SATA 6G
— • M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed
RAID:
– Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
* SATA_A1~A2 do not support RAID function.
USB:
– 2x USB 2.0 (Rear)
– 4x USB 2.0 (Front)
– 4x USB 5Gbps Type A (Rear)
– 2x USB 5Gbps Type A (Front)
– 3x USB 10Gbps Type A (Rear)
– 1x USB 10Gbps Type C (Front)
– 1x USB 20Gbps Type C (Rear)
LAN: Realtek® RTL8125BG 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH:
– AMD Wi-Fi 6E
– The Wireless module is pre-installed in the M.2 (Key-E) slot
– Supports MU-MIMO TX/RX
– Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
– Supports 802.11 a/ b/ g/ n/ ac/ ax
– Supports Bluetooth® 5.3**
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio:
– Realtek® ALC4080 Codec
– 7.1-Channel USB High Performance Audio
– Supports up to 32-Bit/384 kHz playback on front panel
Internal IO:
– 1x Power Connector(ATX_PWR)
– 2x Power Connector(CPU_PWR)
– 1x CPU Fan
– 1x Pump Fan
– 6x System Fan
– 2x Front Panel (JFP)
– 1x Chassis Intrusion (JCI)
– 1x Front Audio (JAUD)
– 1x Tuning Controller connector(JDASH)
– 2x Addressable V2 RGB LED connector (JARGB_V2)
– 2x RGB LED connector(JRGB)
– 1x TPM pin header(Support TPM 2.0)
– 4x USB 2.0 ports
– 2x USB 5Gbps Type A ports
– 1x USB 10Gbps Type C ports
LED FEATURE:
– 4x EZ Debug LED
– 1x EZ LED Control switch

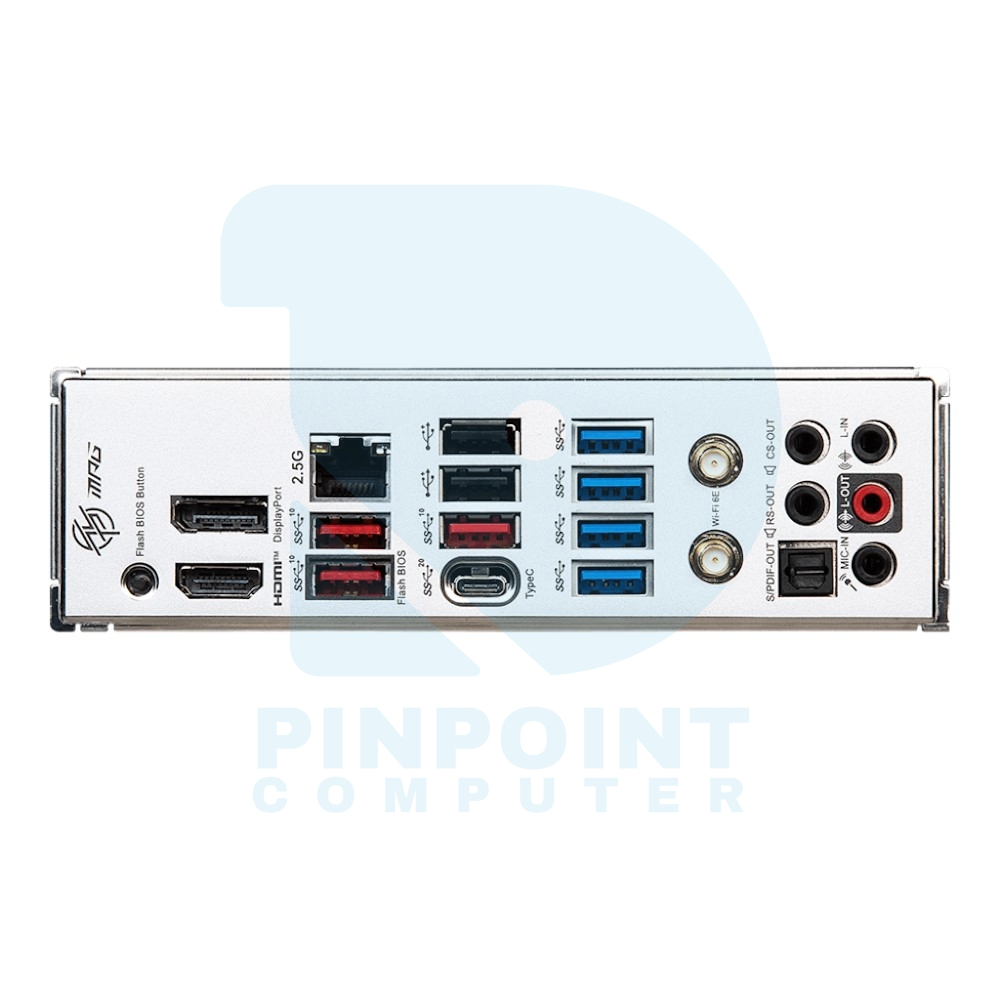

BACK PANEL PORTS:
– Display Port
– 2.5G LAN
– USB 2.0 (Type-A)
– Wi-Fi / Bluetooth
– Audio Connectors
– Flash BIOS Button
– HDMI™
– USB 10Gbps (Type-A)
– USB 20Gbps (Type-C)
– USB 5Gbps (Type-A)
– Optical S/PDIF Out
OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info:
– ATX
– 243.84mmx304.8mm
