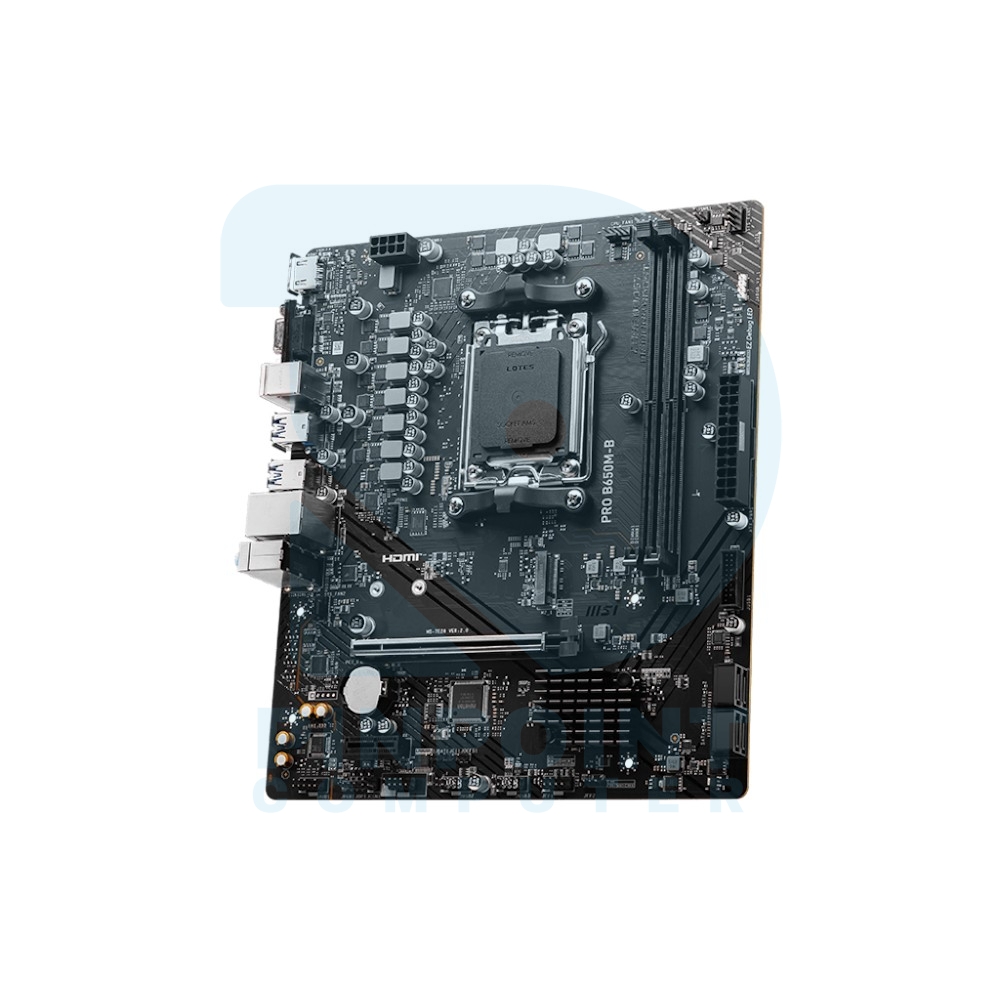

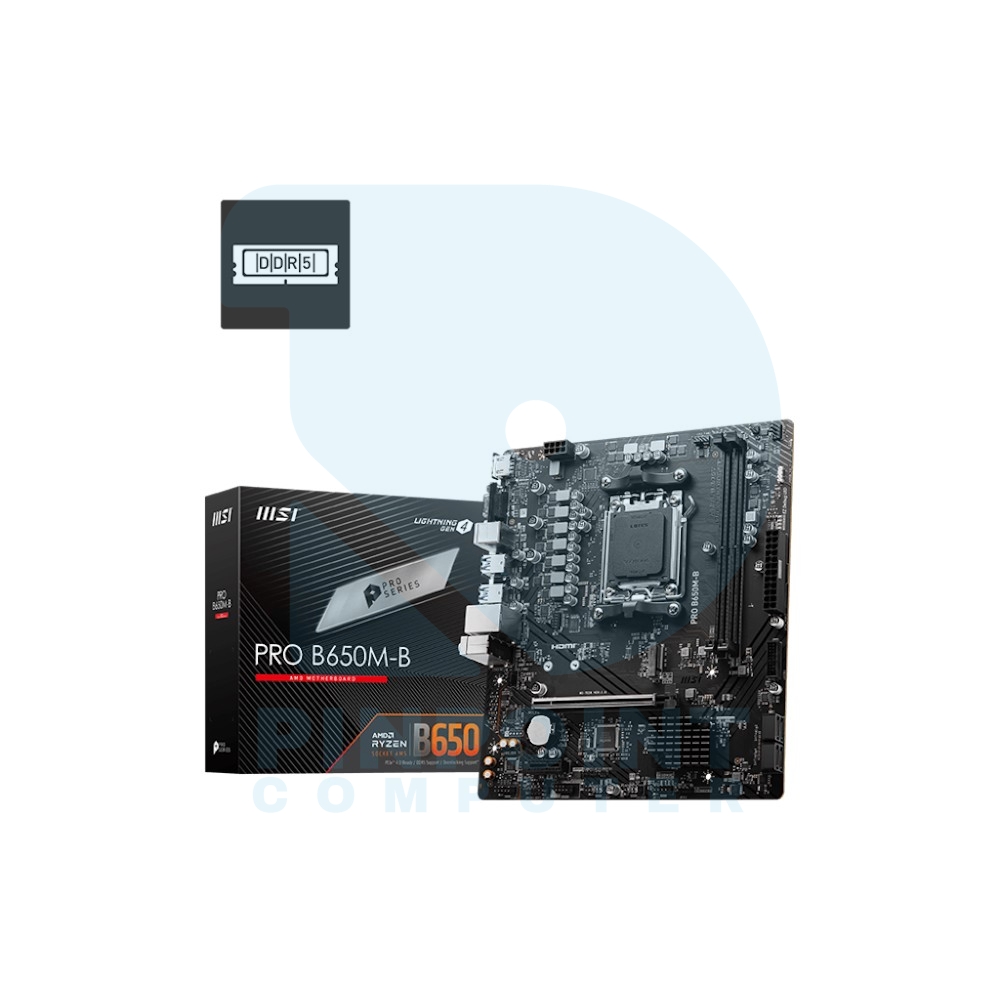

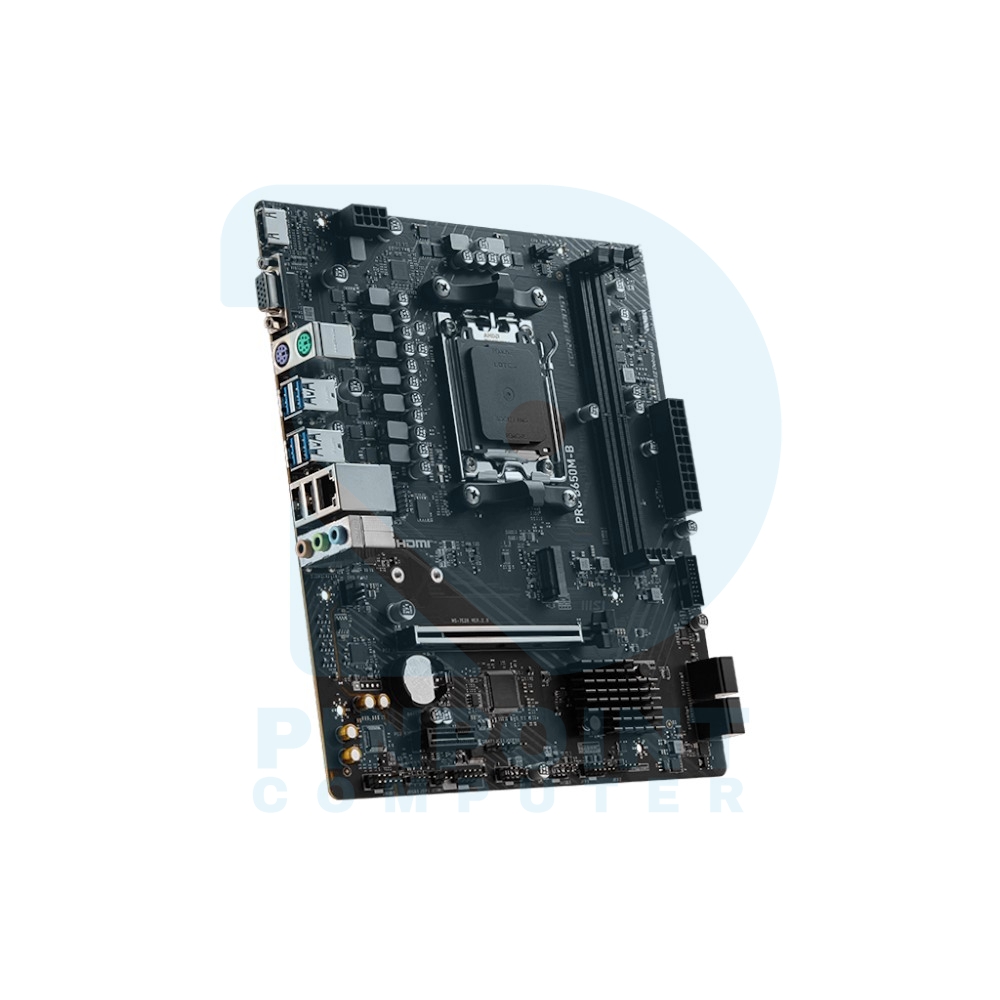

MSi Pro B650M-B AMD Motherboard

Chat Terlebih Dahulu Untuk Memastikan Ketersediaan Barang
https://www.tokopedia.com/pinpointcomputer/msi-pro-b650m-b-amd-motherboard-1730136168169505874
Garansi Resmi: AAA
Specifications:
Chipset: AMD B650
CPU: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory:
– 2x DDR5, Maximum Memory Capacity 128GB
– Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
– Max. overclocking frequency:
— • 1DPC 1R Max speed up to 6800+ MHz
— • 1DPC 2R Max speed up to 6000+ MHz
– Supports Dual-Channel mode
– Supports non-ECC, un-buffered memory
– Supports AMD EXPO
Onboard Graphics:
– 1x HDMI™
– Support HDMITM 2.1, maximum resolution of 4K 60Hz*
– 1x VGA
– Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot:
– 1x PCI-E x16 slot
– • Supports x16 (For Ryzen™ 9000 and 7000 Series processors)
— • Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
— • Supports x4 (For Ryzen™ 5 8500G processor)
– 1x PCI-E x1 slot
– PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
– PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage:
– 1x M.2
– M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
– 4x SATA 6G
RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

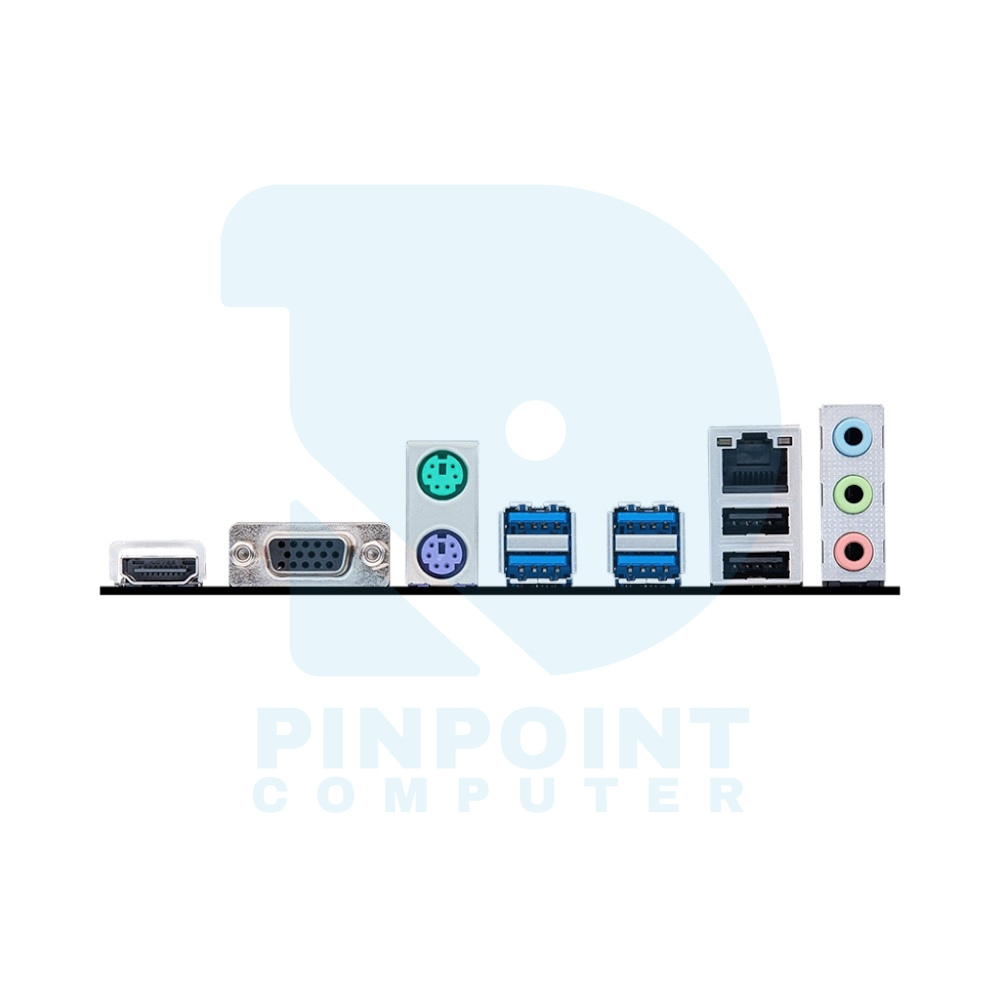

USB:
– 2x USB 2.0 (Rear)
– 4x USB 2.0 (Front)
– 4x USB 5Gbps Type A (Rear)
– 2x USB 5Gbps Type A (Front)
LAN: Realtek® RTL8125BG 2.5G LAN
Audio:
– Realtek® ALC897 Codec
– 7.1-Channel High Definition Audio
Internal IO:
– 1x Power Connector(ATX_PWR)
– 1x Power Connector(CPU_PWR)
– 1x CPU Fan
– 2x System Fan
– 2x Front Panel (JFP)
– 1x Chassis Intrusion (JCI)
– 1x Front Audio (JAUD)
– 1x Com Port (JCOM)
– 1x Addressable V2 RGB LED connector (JARGB_V2)
– 1x RGB LED connector(JRGB)
– 1x TPM pin header(Support TPM 2.0)
– 4x USB 2.0 ports
– 2x USB 5Gbps Type A ports
LED FEATURE: 4x EZ Debug LED
OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit
