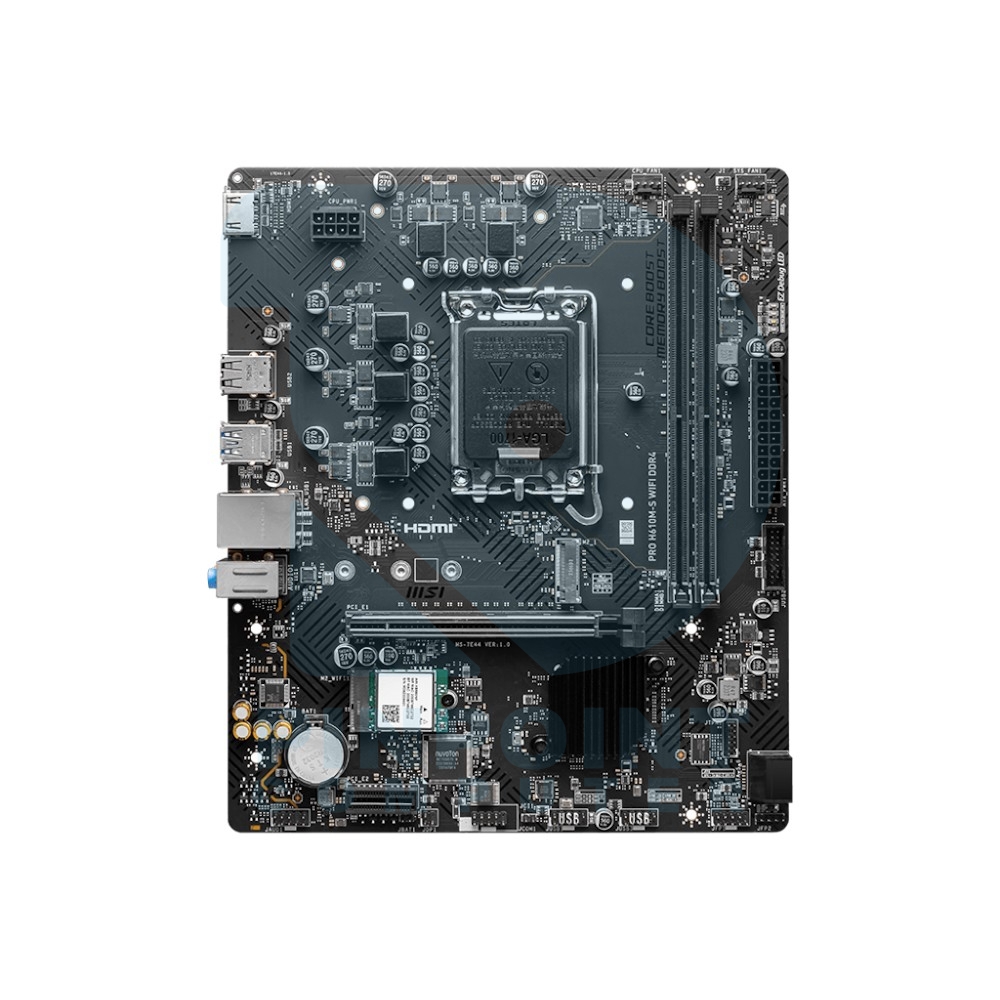

MSi Pro H610M-S WiFi DDR4 Intel Motherboard

Chat Terlebih Dahulu Untuk Memastikan Ketersediaan Barang
https://www.tokopedia.com/pinpointcomputer/msi-pro-h610m-s-wifi-ddr4-intel-motherboard-1731565090119583030
Garansi Resmi: WPGAAA
Specifications:
CHIPSET: INTEL H610
CPU:- Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
– LGA 1700
MEMORY:
– 2x DDR4, Maximum Memory Capacity 64GB
– Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
– Supports Dual-Channel mode
– Supports non-ECC, un-buffered memory
AUDIO:
– Realtek ALC897 Codec
– 7.1-Channel High Definition Audio
STORAGE:
– 1x M.2
– M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
– 2x SATA 6GLAN: Realtek RTL8111H Gigabit LAN
ONBOARD GRAPHICS:
– 1x HDMI
– Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz
**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT:
– 1x PCI-E x16 slot
– 1x PCI-E x1 slot
– PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
– PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
USB:
– 4x USB 2.0 (Rear)
– 4x USB 2.0 (Front)
– 2x USB 5Gbps Type A (Rear)
– 2x USB 5Gbps Type A (Front)
WIRELESS LAN & BLUETOOTH:
– Wi-Fi 6E
– The Wireless module is pre-installed in the M.2 (Key-E) slot
– Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz
* (160MHz) up to 2.4Gbps
– Supports 802.11 a/ b/ g/ n/ ac/ ax
– Supports Bluetooth 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
INTERNAL IO:
– 1x Power Connector(ATX_PWR)
– 1x Power Connector(CPU_PWR)
– 1x CPU Fan
– 1x System Fan
– 2x Front Panel (JFP)
– 1x Chassis Intrusion (JCI)
– 1x Front Audio (JAUD)
– 1x Com Port (JCOM)
– 1x TPM pin header(Support TPM 2.0)
– 4x USB 2.0 ports
LED FEATURE: 4x EZ Debug LED

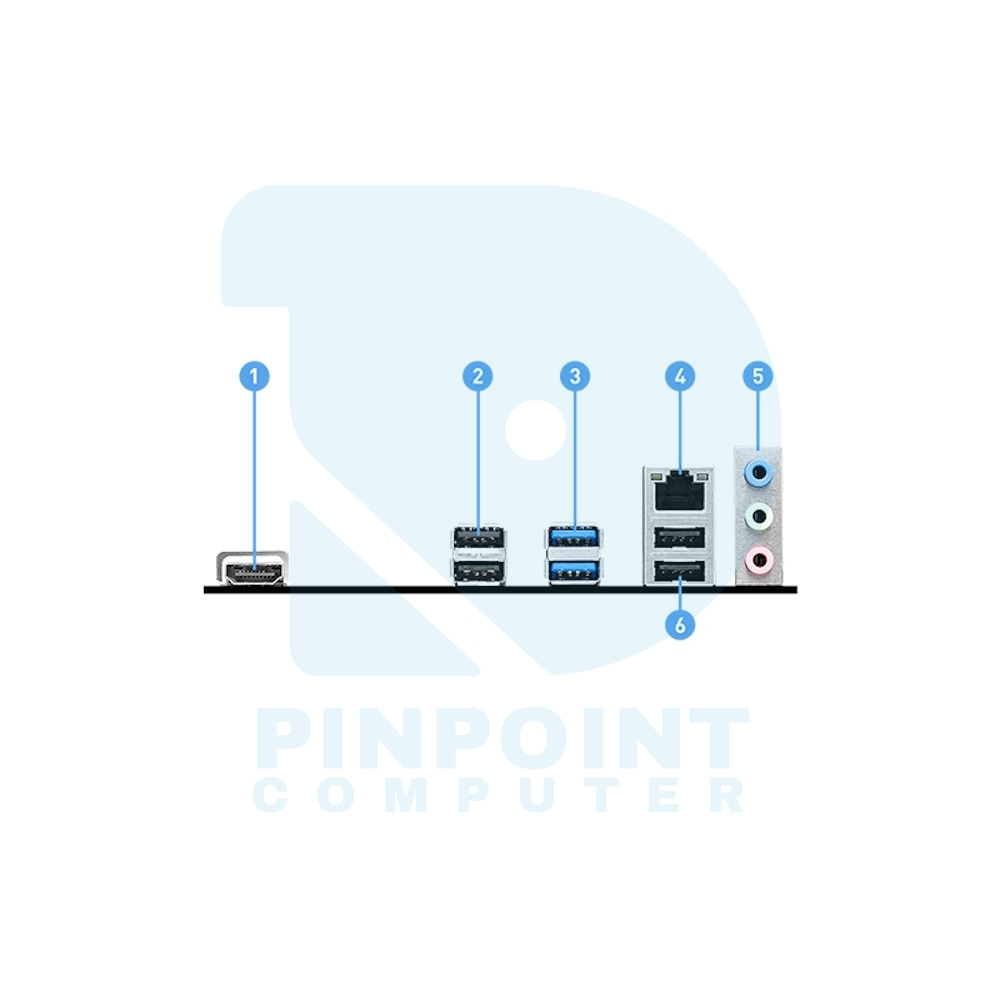

BACK PANEL PORTS:
1. HDMI
2. USB 3.2 Gen 1 5Gbps (Type-A)
3. USB 2.0
4. LAN port
5. Audio Connectors
6. USB 2.0
OPERATING SYSTEM: Support for Windows 11 64-bit, Windows 10 64-bit
PCB INFO:
– mATX
– 200mmx236.16mm
