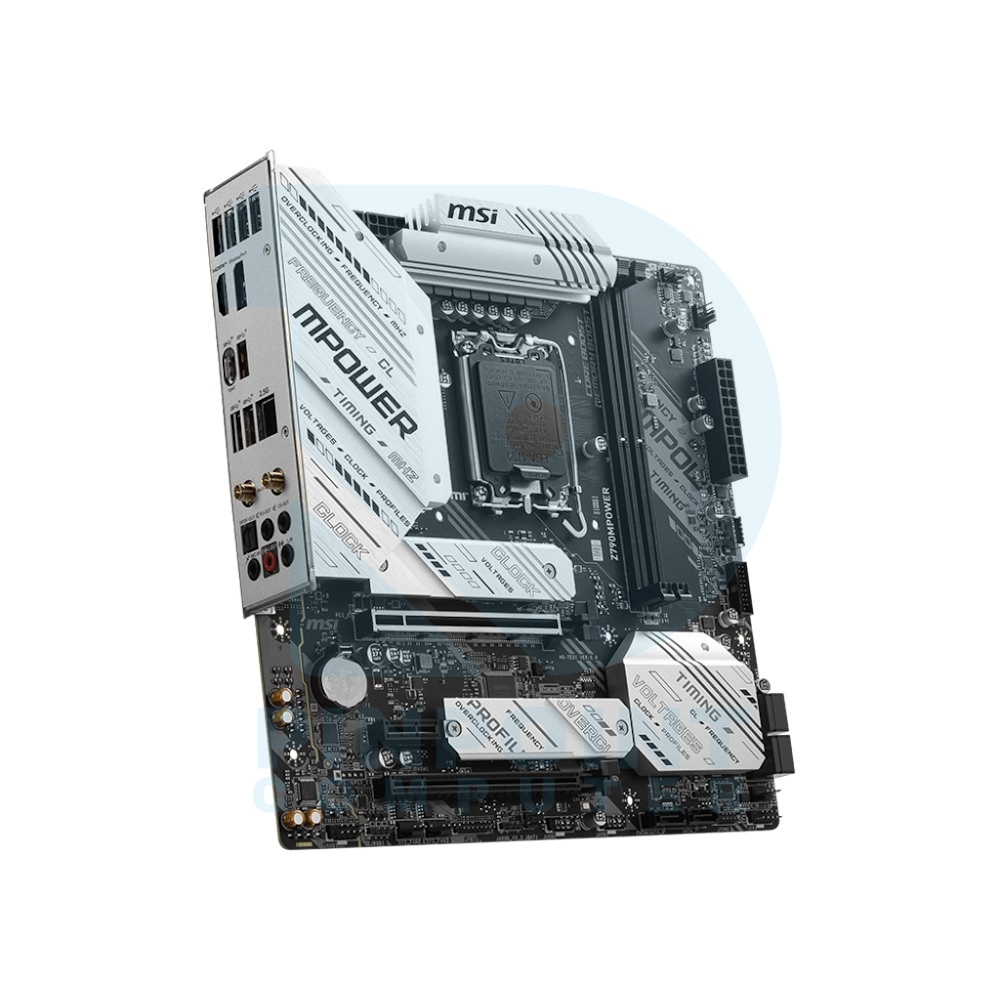

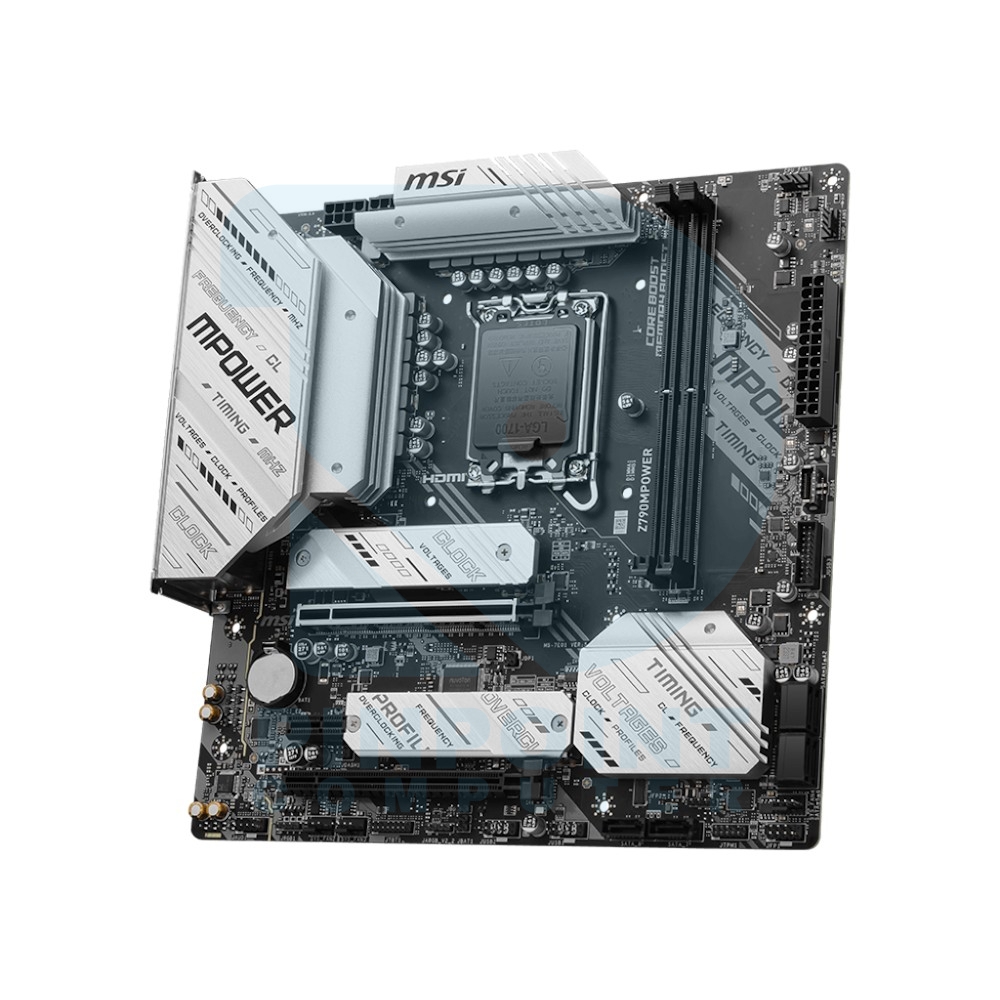

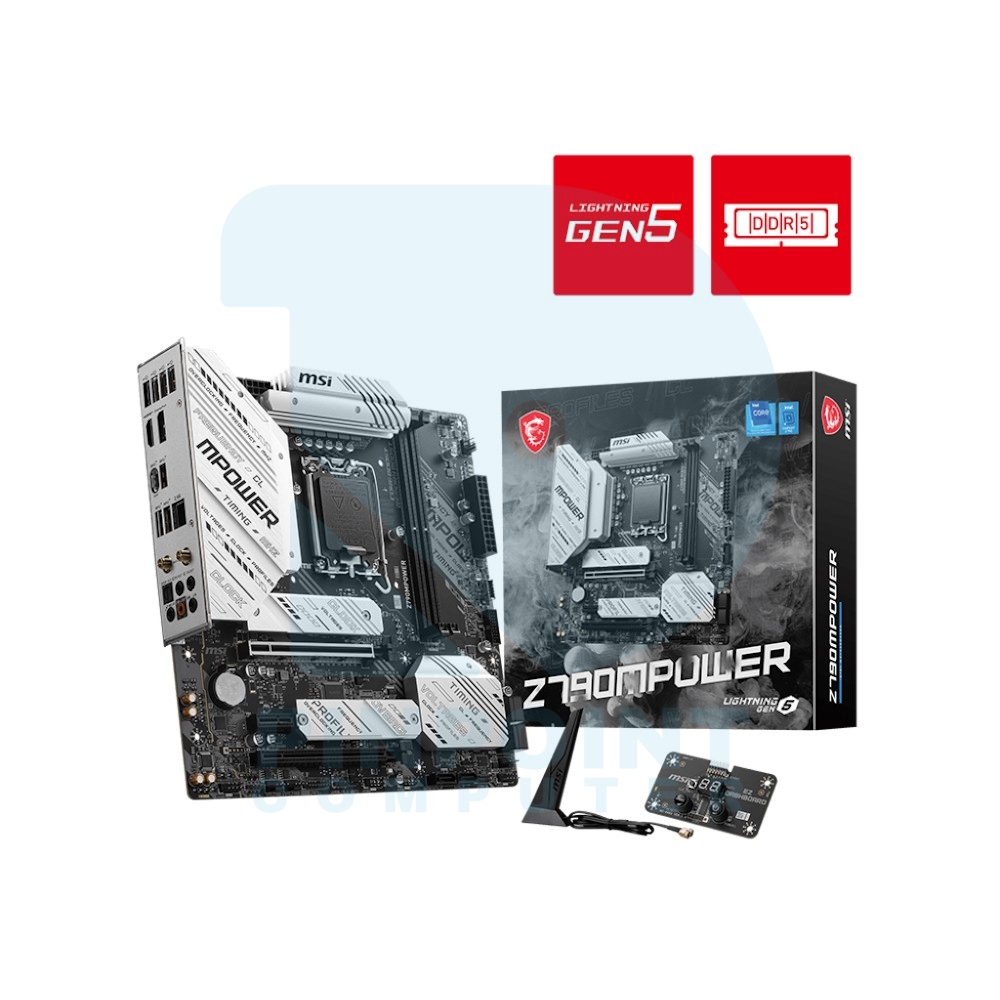

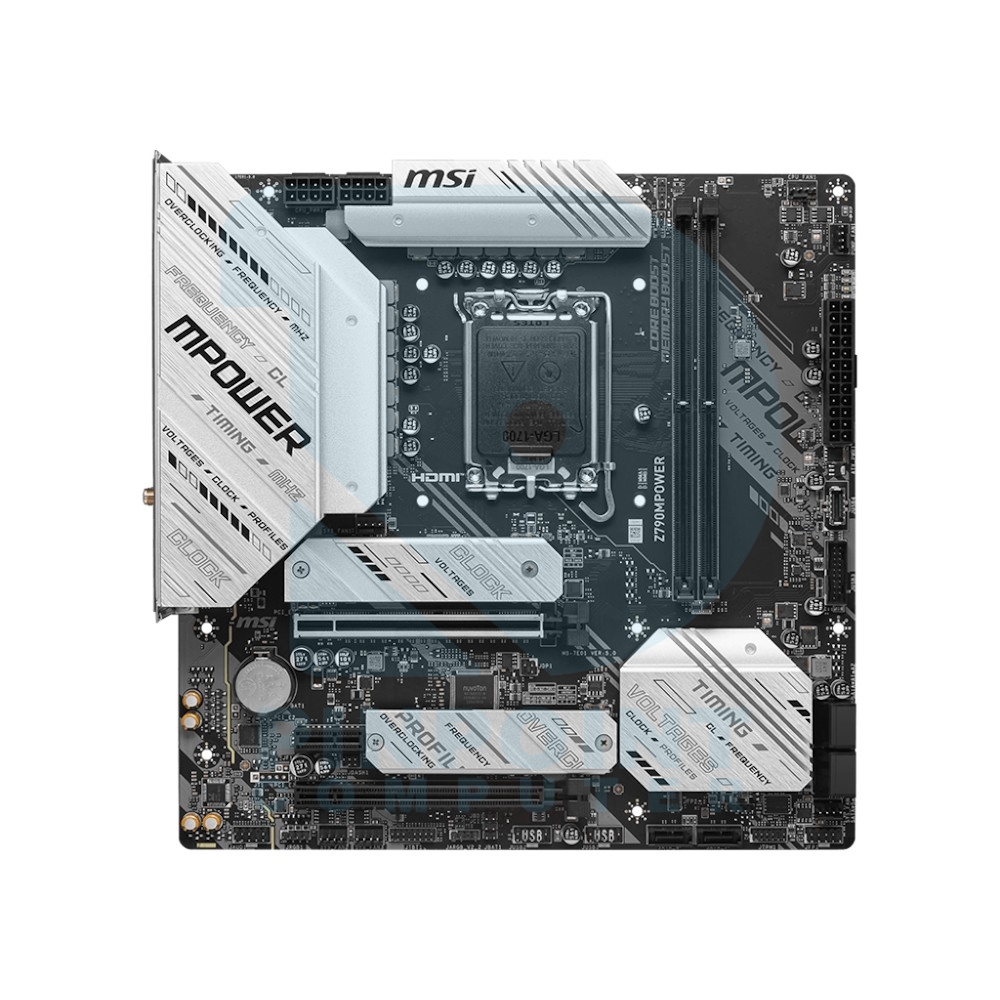

MSi Z790M Power Intel Motherboard

Chat Terlebih Dahulu Untuk Memastikan Ketersediaan Barang
https://www.tokopedia.com/pinpointcomputer/msi-z790m-power-motherboard-intel
Garansi Resmi: AAA
Specifications:
Chipset: INTEL Z790
CPU: Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA1700
Memory:
– 2x DDR5, Maximum Memory Capacity 128GB
– Memory Support 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
– Max. overclocking frequency:
— • 1DPC 1R Max speed up to 8000+ MHz
— • 1DPC 2R Max speed up to 6400+ MHz
– Supports Dual-Channel mode
– Supports non-ECC, un-buffered memory
– Supports Intel® Extreme Memory Profile
Onboard Graphics:
– 1x HDMI™
– Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
– 1x DisplayPort
– Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot:
– 2x PCI-E x16 slot (Qty)
– Supports x16/x4
– 1x PCI-E x1 slot (Qty)
– PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
– PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
– PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage:
– 2x M.2 (Qty)
– M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
– M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
– 6x SATA 6G (Qty)
RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices*
* SATA_A1_A2 do not support RAID function.
USB:
– 4x USB 2.0 (Rear)
– 4x USB 2.0 (Front)
– 2x USB 5Gbps Type A (Front)
– 3x USB 10Gbps Type A (Rear)
– 1x USB 10Gbps Type C (Front)
– 1x USB 20Gbps Type C (Rear)
LAN: Realtek® 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH:
– Intel® Wi-Fi 6E
– The Wireless module is pre-installed in the M.2 (Key-E) slot
– Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
– Supports 802.11 a/ b/ g/ n/ ac/ ax
– Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio:
– Realtek® ALC897 Codec
– 7.1-Channel High Performance Audio
– Supports S/PDIF output
Internal IO:
– 1x Power Connector(ATX_PWR)
– 2x Power Connector(CPU_PWR)
– 1x CPU Fan
– 1x Pump Fan
– 4x System Fan
– 2x Front Panel (JFP)
– 1x Chassis Intrusion (JCI)
– 1x Front Audio (JAUD)
– 1x TBT connector (JTBT, supports RTD3)
– 1x Tuning Controller connector(JDASH)
– 2x Addressable V2 RGB LED connector (JARGB_V2)
– 1x RGB LED connector(JRGB)
– 1x TPM pin header(Support TPM 2.0)
– 4x USB 2.0 ports
LED FEATURE: 4x EZ Debug LED

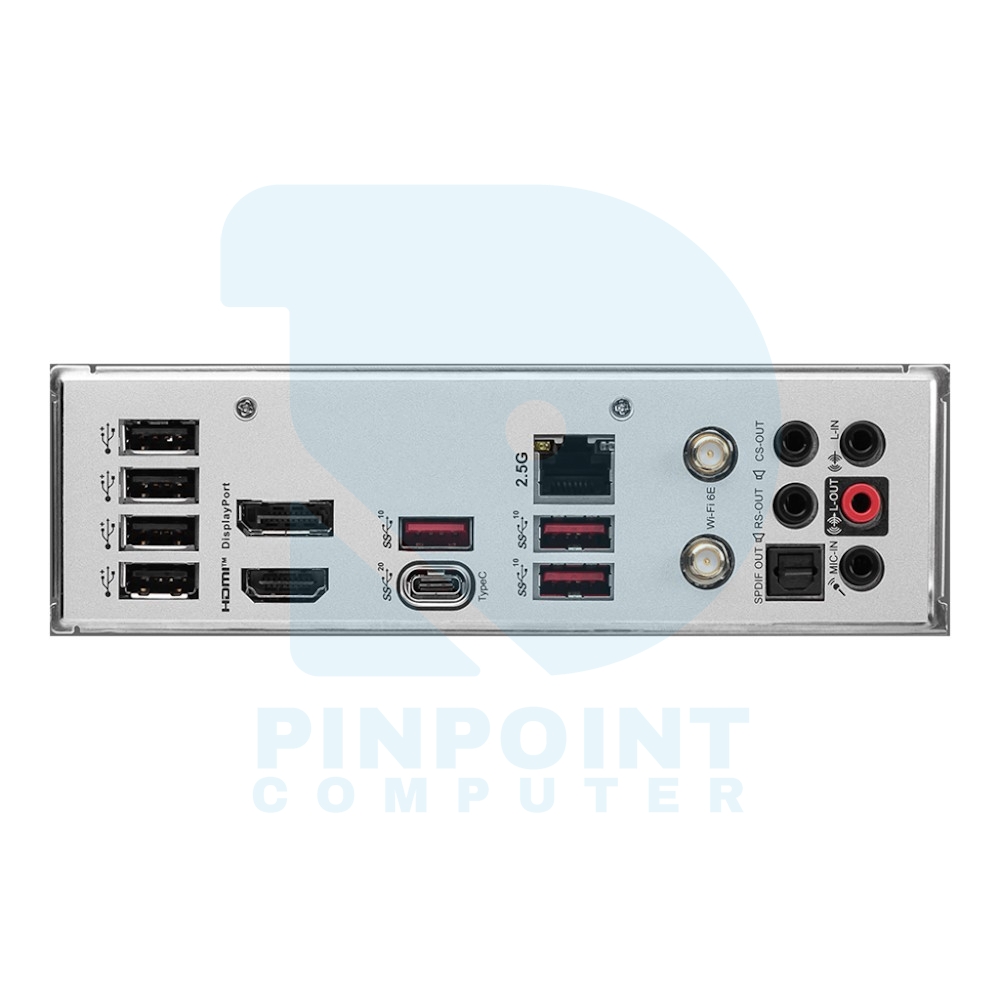

BACK PANEL PORTS:
– USB 2.0
– DisplayPort 1.4
– USB 3.2 Gen 2 10Gbps Type-A
– 2.5G LAN Port
– Wi-Fi / Bluetooth Antenna
– HD Audio Connectors
– HDMI™ 2.1 Port
– USB 3.2 Gen 2×2 20Gbps Type-C
– Optical S/PDIF OUT
OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info:
– mATX
– 243.84mmx243.84mm
